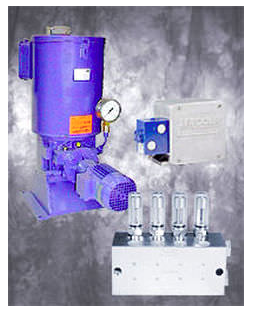

Lincoln Helios Dual-line Lubrication System

SKF Lubrication

Lincoln Fluid Control

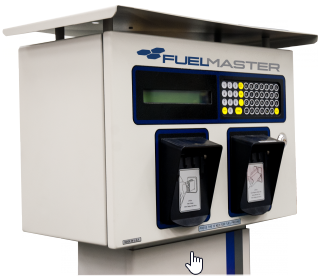

FuelMaster 3505 Plus Fuel Management System

Lincoln Lubrication Pumps

Lincoln Filters, Regulators, Lubricators

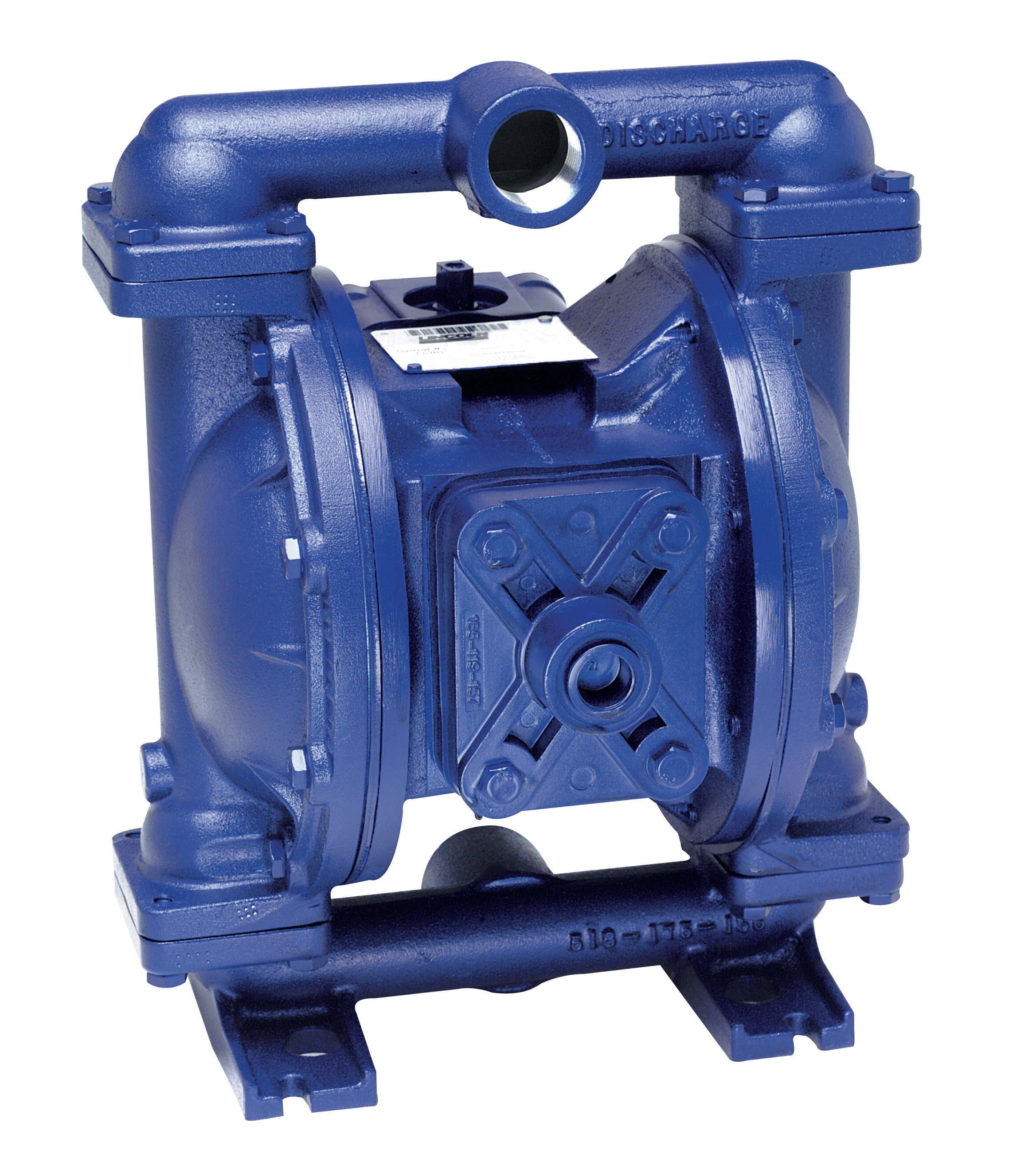

Lincoln Double Diaphragm Pumps

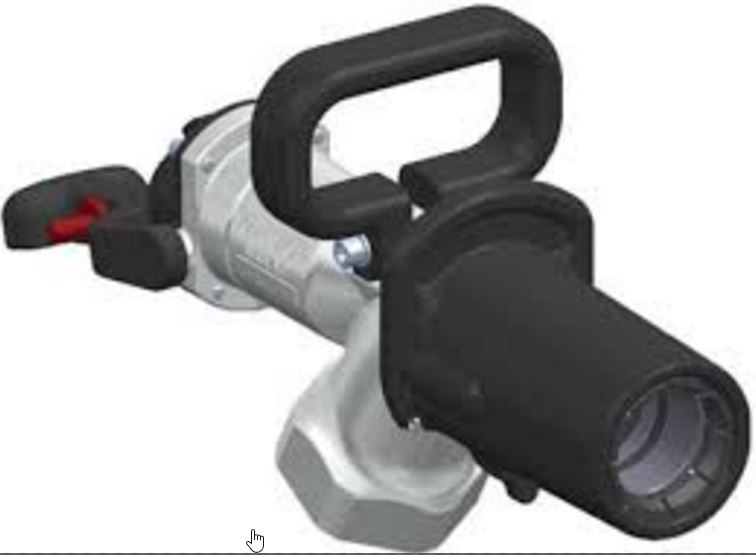

Wiggins ZZ9A2 Fuel Nozzle

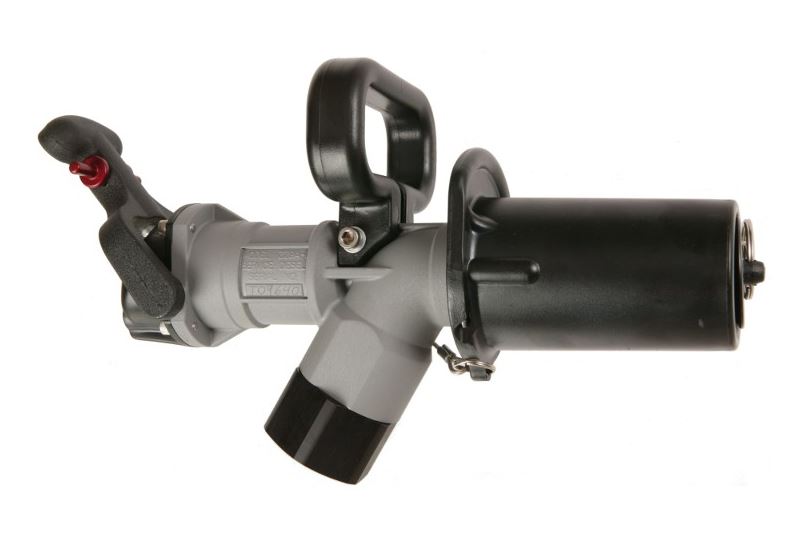

Wiggins ZZ9A1 Fuel Nozzle

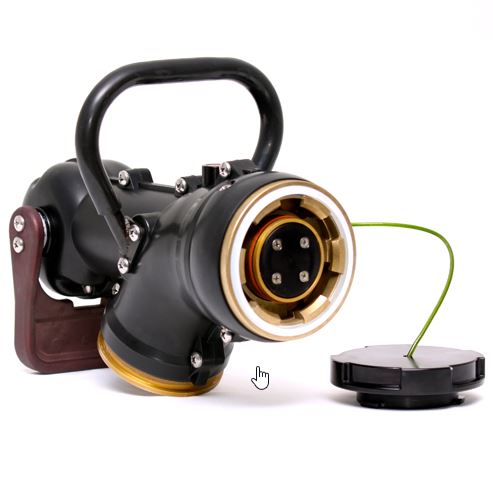

Wiggins VR300 Very High Flow Diesel Nozzle

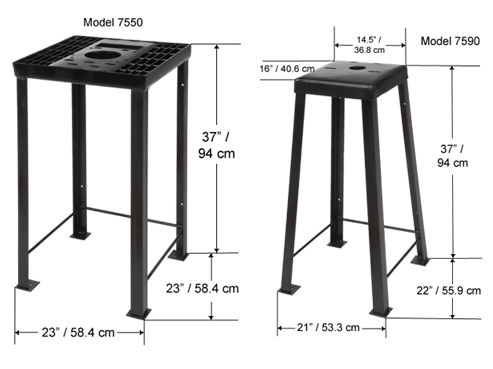

BJE Truck & Automotive Filter Crusher Stands

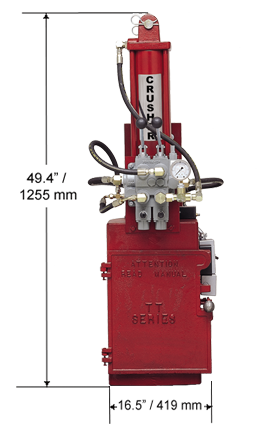

BJE Oil Filter Crusher TT-25

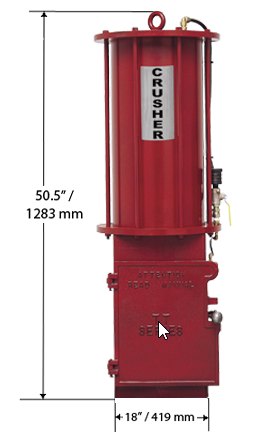

BJE Oil Filter Crusher TT-12

Latest News


Curt Denney

Curt Denney has been in this industry since 1978 with a full range of experience and been with Dean Industrial since August 2014.

Read more ...

SKF/Lincoln Construction Partner

We specialize in system design, installation and service of automated lubrication systems.

Read more ...

Water Wars

Steve Sigle from Dean Industrial was interviewed at the beginning in this video courtesy

Read more ...

SKF/Lincoln Grease Injectors

Lincoln Grease Injectors



Series SL-33

  • For single-line, high-pressure central lubrication system
  • For dispensing petroleum-based lubricants with a viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of Injectors SL-32, SL-V, SL-V XL, SL-1 and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Available in stainless steel SAE 304, for application where environmental conditions are hazardous to carbon steel or in industries preferring stainless steel

Specifications:

  • Series SL-33
  • Output:
    • Minimum: .001 cu. in. (.016 cc)
    • Maximum: .003 cu. in. (.049 cc)
  • Operating pressure:
    • Minimum: 1200 psig (83 bar)
    • Maximum: 3500 psig (241 bar)
    • Typical: 1500 psig (103 bar)
    • Vent: 200 psig (14 bar)
 SL 33
Model Number of outlets Connections Dimensions
Manifold inlet Injector outlet A B
Carbon steel 304 Stainless steel   in. NPTF in. O.D tube in. mm in. mm
83309-1 83715-1 1 1/8 (F) 1/8 1-1/8 29 1-5/8 41
83309-2 83715-2 2 1/8 (F) 1/8 1-7/8 48 2-3/8 60
83309-3 83715-3 3 1/8 (F) 1/8 2-5/8 67 3-1/8 79
83309-4 83715-4 4 1/8 (F) 1/8 3-3/8 86 3-7/8 98
83309-5 - 5 1/8 (F) 1/8 4-1/8 105 4-5/8 117
83309-6 83715-6 6 1/8 (F) 1/8 4-7/8 124 5-3/8 137
- 83715-7 7 1/8 (F) 1/8 5-5/8 143 6-1/8 156
83900 83900-9 1 1/8 (M) 1/8 Single injector/ No manifold
83314 83314-9 - - 1/8 Single replacement injector

Note:

  1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing. - 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Injectors have nitrile packings (200°F max. (93°C)). Checking packing compatibility with synthetic lubricants.
  4. Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with two turns at .001 cu. in./ turn.

Series SL-32

  • For single-line, high-pressure central lubrication system
  • For dispensing petroleum-based lubricants with a viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of Injectors SL-33, SL-V, SL-V XL, SL-1 and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Available in stainless steel SAE 304, for application where environmental conditions are hazardous to carbon steel or in industries preferring stainless steel

Specifications:

  • Series SL-32
  • Output:
    • Minimum: .001 cu. in. (.016 cc)
    • Maximum: .008 cu. in. (.131 cc)
  • Operating pressure:
    • Minimum: 1200 psig (83 bar)
    • Maximum: 3500 psig (241 bar)
    • Typical: 1500 psig (103 bar)
    • Vent: 200 psig (14 bar)
Model Number of outlets Connections Dimensions
Manifold inlet Injector outlet A B
Carbon steel 304 Stainless steel   in. NPTF in. O.D tube in. mm in. mm
83336-1 83724-1 1 1/4 (F) 1/8 1-1/4 32 1-3/4 44
83336-2 83724-2 2 1/4 (F) 1/8 2 51 2-1/2 63
83336-3 83724-3 3 1/4 (F) 1/8 2-3/4 70 3-1/4 82
83336-4 83724-4 4 1/4 (F) 1/8 3-1/2 89 4 101
83338 - 1 1/4 (M) 1/8 Single injector / No manifold
83337 83337-9 - - 1/8 Single replacement injector

Note:

  1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing. - 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Injectors have nitrile packings (200°F max. (93°C)). Checking packing compatibility with synthetic lubricants.
  4. Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with five turns at .0014 cu. in./ turn.

Series SL-32HV

  • For single-line, high-pressure central lubrication system
  • For dispensing petroleum-based lubricants with a viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of Injectors SL-32, SL-V, SL-V XL, SL-1 and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement

Specifications:

  • Series SL-32HV
  • Output:
    • Minimum: .001 cu. in. (.016 cc)
    • Maximum: .008 cu. in. (.131 cc)
  • Operating pressure:
    • Minimum: 1200 psig (83 bar)
    • Maximum: 3500 psig (241 bar)
    • Typical: 1500 psig (103 bar)
    • Vent: 400 psig (28 bar)
Model Number of outlets Connections Dimensions
    Manifold inlet Injector outlet A B
    in. NPTF in. O.D tube in. mm in. mm
83336HV-1 1 1/4 (F) 1/8 1-1/4 32 1-3/4 44
83336HV-2 2 1/4 (F) 1/8 2 51 2-1/2 63
83336HV-3 3 1/4 (F) 1/8 2-3/4 70 3-1/4 82
83336HV-4 4 1/4 (F) 1/8 3-1/2 89 4 101
83336HV-5 5 1/4 (F) 1/8 4-1/4 108 4-3/4 120
83336HV-6 6 1/4 (F) 1/8 5 127 5-1/2 139
83336HV-7 7 1/4 (F) 1/8 5-3/4 146 6-1/4 158
83336HV-8 8 1/4 (F) 1/8 6-1/2 165 7 177
83336HV-9 9 1/4 (F) 1/8 7-1/4 184 7-3/4 196
83336HV-10 10 1/4 (F) 1/8 8 203 8-1/2 215
83338HV 1 1/4 (M) 1/8 Single injector/ No manifold
83337HV - - 1/8 Single replacement injector

Note:

  1. Injectors, except replacement injectors for manifold, include compression nut and ferrule for tubing. - 1/8" O.D. as standard. Other outlet connectors for feed line optional.
  2. Injectors with manifolds include two mounting clips and screws.
  3. Injectors have nitrile packings (200°F max. (93°C)). Checking packing compatibility with synthetic lubricants.
  4. Output with indicator cap hand-tightened is .001 cu. in. Maximum output is achieved with five turns at .0014 cu. in./ turn.

Series SL-V

  • For single-line, high-pressure central lubrication system
  • For dispensing lubricants compatible with polyurethane seals up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of Injectors SL-32, SL-33, SL-V XL, SL-1 and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Each SL-V injector includes a clear polycarbonate protective cap.

Specifications:

  • Series SL-V
  • Carbon steel
  • Output:
    • Minimum: .015 cu. in. (.25 cc)
    • Maximum: .08 cu. in. (1.31 cc)
  • Operating pressure:
    • Minimum: 1850 psig (128 bar)
    • Maximum: 6000 psig (413 bar)
    • Typical: 2500 psig (172 bar)
    • Vent: 1000 psig (69 bar)
  • Manifold inlet: 3/8 in. NPTF(F)
  • Injector outlet: 1/8 in. NPTF(F)
Model Type Number of outlets Dimensions
    A B
      in. mm in. mm
85770-1 One injector manifold 1 Single mounting hole 2-1/2 63
85770-2 Two injector manifold 2 Single mounting hole 3 76
85770-3 Three injector manifold 3 1-1/4 32 4-1/4 108
85770-4 Four injector manifold 4 2-1/2 63 5-1/2 140
85770-5 Five injector manifold 5 3-3/4 95 6-3/4 171
85770-6 Six injector manifold 6 5 127 8 203
85771 Replacement for manifold injectors
85772 Single injector/no manifold - 3/8 in. NPTF(M) inlet

Note:

  1. Injector manifolds have 13/32 in. (10.3mm) diameter mounting holes for 3/8 in. bolt.
  2. Injectors have polyurethane seals. Check compatibility with synthetic lubricants.
  3. Injectors rated for 180°F (80°C)max. ambient temperature, depending on lubricant used.
  4. Injectors include fitting for filling feedlines via alternate outlet port.
  5. Output with adjustment screw hand-tightened is .015 cu. in. Maximum output is achieved with five turns at .014 cu. in./ turn.

Series SL-V XL

  • For single-line, high-pressure central lubrication system
  • For dispensing lubricants compatible with polyurethane seals up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of Injectors SL-32, SL-33, SL-V XL, SL-1 and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Each SL-V injector includes a clear polycarbonate protective cap
  • Two SL-V XL injectors are required to replace one SL-11 injector

Specifications:

  • Series SL-V XL
  • Carbon steel
  • Output:
    • Minimum: .015 cu. in. (.25 cc)
    • Maximum: .305 cu. in. (5.00 cc)
  • Operating pressure:
    • Minimum: 1850 psig (128 bar)
    • Maximum: 6000 psig (413 bar)
    • Typical: 2500 psig (172 bar)
    • Vent: 1000 psig (69 bar)
  • Manifold inlet: 3/8 in. NPTF(F)
  • Injector outlet: 1/8 in. NPTF(F)
Model Type Number of outlets Dimensions
    A B
      in. mm in. mm
85770-1 One injector manifold 1 Single mounting hole 2-1/2 63
85770-2 Two injector manifold 2 Single mounting hole 3 76
85770-3 Three injector manifold 3 1-1/4 32 4-1/4 108
85770-4 Four injector manifold 4 2-1/2 63 5-1/2 140
85770-5 Five injector manifold 5 3-3/4 95 6-3/4 171
85770-6 Six injector manifold 6 5 127 8 203
85771 Replacement for manifold injectors
85772 Single injector/no manifold - 3/8 in. NPTF(M) inlet

Note:

  1. Injector manifolds have 13/32 in. (10.3mm) diameter mounting holes for 3/8 in. bolt.
  2. Injectors have polyurethane seals. Check compatibility with synthetic lubricants.
  3. Injectors rated for 180°F (80°C)max. ambient temperature, depending on lubricant used.
  4. Injectors include fitting for filling feedlines via alternate outlet port.
  5. Output with adjustment screw hand-tightened is .015 cu. in. Maximum output is achieved with 20-1/2 turns at .014 cu. in./ turn.
Spectrum Adjustment Sleeves
Model Output Ratio from max. output Ratio from min. output  Sleeve color
(10/bag only)  cu. in. cc
N/A 0.015 .25 0.05 1 NA
85785-1 0.030 0.50 0.10 2 red
85785-2 0.045 0.75 0.15 3 silver
85785-3 0.060 1.00 0.20 4 gold
85785-4 0.075 1.25 0.25 5 green
85785-5 0.113 1.88 0.37 7.5 black
85785-6 0.150 2.50 0.50 10 purple
85785-7 0.188 3.13 0.62 12.5 blue
85785-8 0.225 3.75 0.75 15 orange
85785-9 0.263 4.38 0.87 17.5 brown
85785-10 0.300 5.00 1.00 20 yellow

Series SL-1

  • For single-line, high-pressure central lubrication system
  • For dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of Injectors SL-32, SL-33, SL-V, SL-V XL and/or SL-11
  • Individual injectors can be easily removed for inspection or replacement
  • Available in stainless steel SAE 316, for application where environmental conditions are hazardous to carbon steel or in industries preferring stainless steel

Specifications:

  • Series SL-1
  • Output:
    • Minimum: .008 cu. in. (.131 cc)
    • Maximum: .080 cu. in. (1.31 cc)
  • Operating pressure:
    • Minimum: 1850 psig (128 bar)
    • Maximum: 3500 psig (241 bar)
    • Typical: 2500 psig (172 bar)
    • Vent: 600 psig (41 bar)
  • Manifold inlet: 3/8 in. NPTF(F)
  • Injector outlet: 1/8 in. NPTF(F)
Model Type Number of outlets Dimensions
material   A B
Carbon Steel Stainless steel     in. mm in. mm
81770-1 239351*  One injector manifold 1 Single mounting hole 2-1/2 63
81770-2 239352* Two injector manifold 2 Single mounting hole 3 76
81770-3 239353* Three injector manifold 3 1-1/4 32 4-1/4 108
81770-4 239354* Four injector manifold 4 2-1/2 63 5-1/2 140
81770-5 239355* Five injector manifold 5 3-3/4 95 6-3/4 171
81770-6   - 6 5 127 8 203
81713   Single injector/no manifold - 3/8 in. NPTF(M) inlet
81713A 84776 Replacement for manifold injectors

Note:

  1. Injector manifolds have 13/32 in. (10.3mm) diameter mounting holes for 3/8 in. bolt.
  2. Injectors have flouroelastomer packings. Check compatibility with synthetic lubricants.
  3. Injectors rated for 350°F (176°C)max. ambient temperature, depending on lubricant used.
  4. Injectors include fitting for filling feedlines via alternate outlet port.
  5. Output with adjustment screw hand-tightened is .009 cu. in. Maximum output is achieved with 8 turns at .009 cu. in./ turn.

Series SL-11

  • For single-line, high-pressure central lubrication system
  • For dispensing lubricants compatible with flouroelastomer packings and viscosity up to NLGI No. 2
  • Output is externally adjustable
  • Indicator stem permits visual check of injector operation
  • May be combined in a circuit of Injectors SL-32, SL-33, SL-V, SL-V XL and/or SL-1
  • Individual injectors can be easily removed for inspection or replacement
  • Available only as a single unit with 1/2" NPTF(F) inlet

Specifications:

  • Series SL-11
  • Carbon steel
  • Output:
    • Minimum: .050 cu. in. (.82 cc)
    • Maximum: .500 cu. in. (8.2 cc)
  • Operating pressure:
    • Minimum: 1000 psig (69 bar)
    • Maximum: 3500 psig (241 bar)
    • Typical: 2500 psig (172 bar)
    • Vent: 800 psig (55 bar)
Model Number of outlets Dimensions
    in. NPTF(F) in. NPTF(F)
85497 1 1/2 1/4

Notes:

  1. Injectors have flouroelastomer packings. Check compatibility with synthetic lubricants.
  2. Injectors rated for 350°F (176°C)max. ambient temperature, depending on lubricant used.
  3. Injectors include fitting for filling feedline via alternate outlet port.
  4. Output with adjustment screw hand-tightened is .05 cu. in. Maximum output is achieved with 11-1/2 turns at .009 cu. in./ turn.
